Unity festival

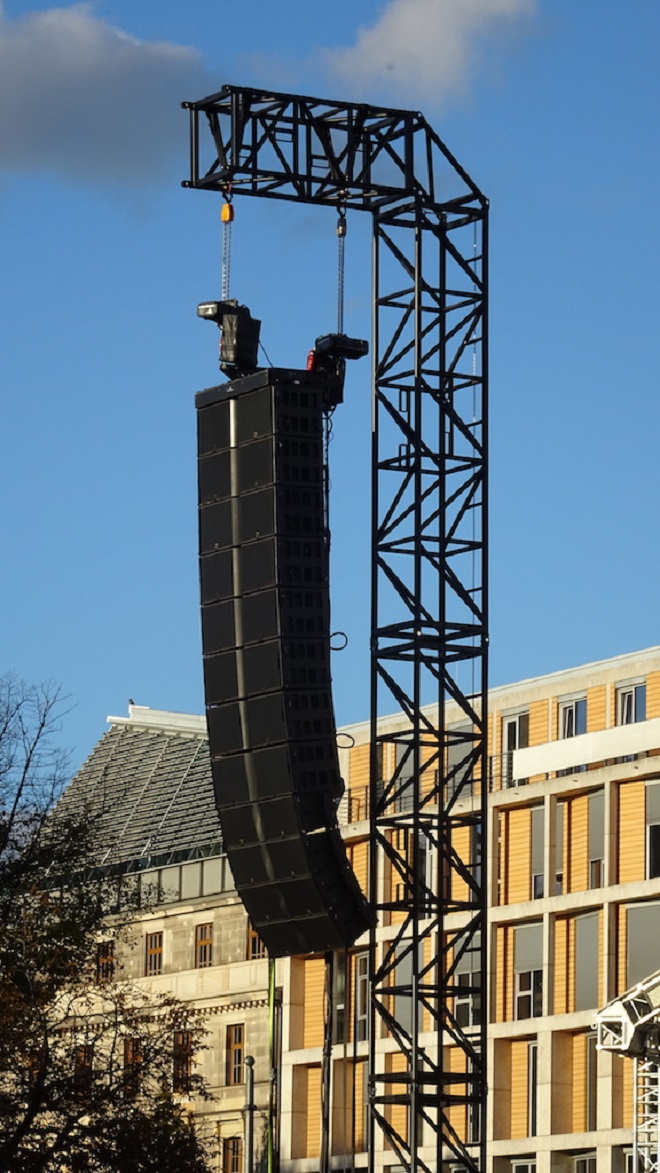

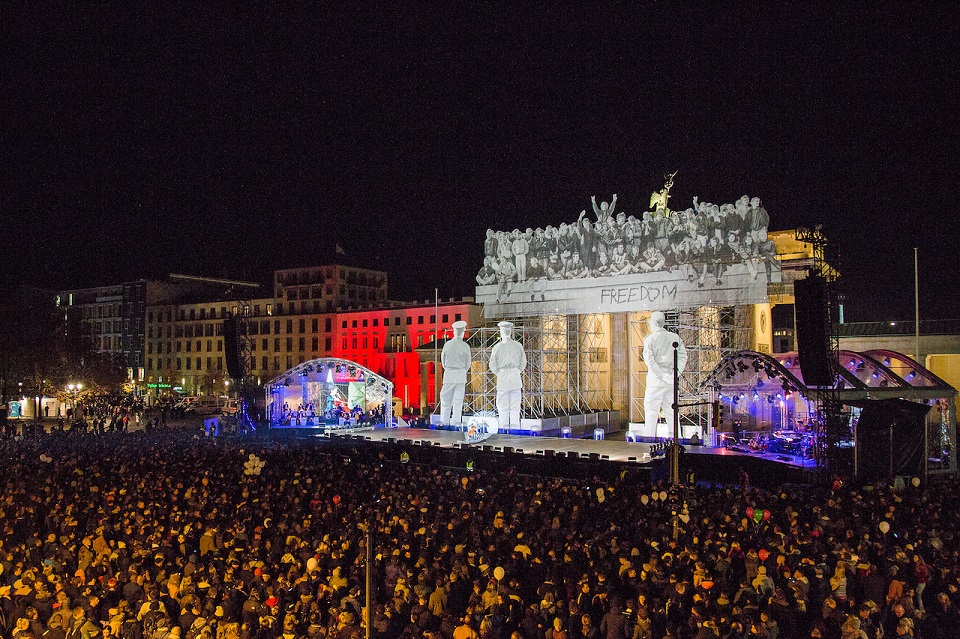

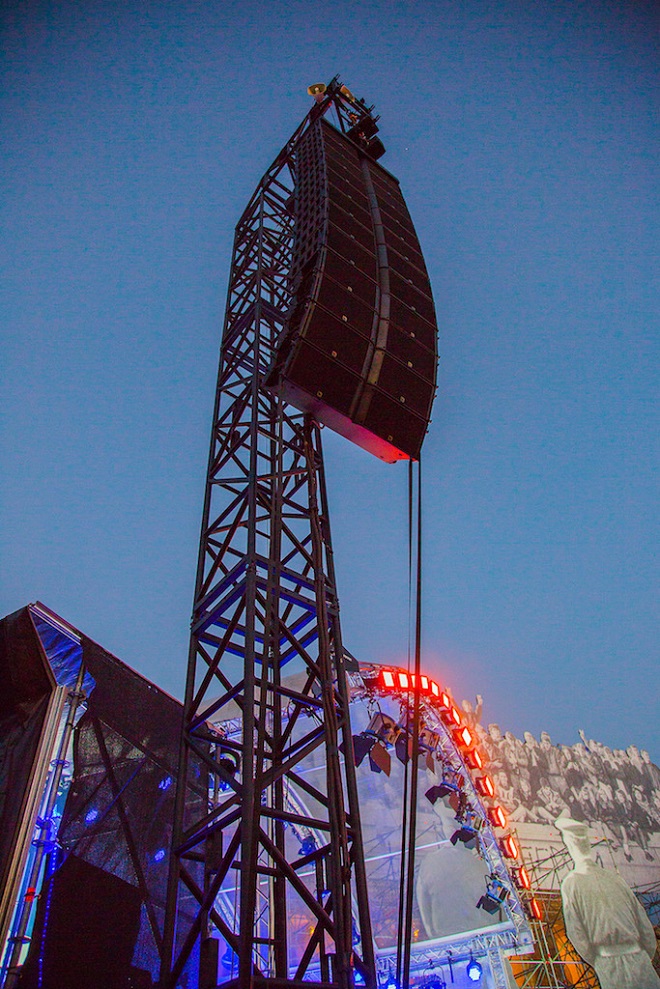

The worldwide debut of two Milos Steel Truss towers took place in Berlin, for the German Unity Day – the largest festival of the year in Germany! The 20 metre high Steel PA towers, which flanked both sides of a massive stage, were constructed with Milos S-M780 Quatro steel truss and supported 2,500 kg of PA and featured a front surface area of 10 m2, side surface area of 5 m2, and a 2 metre cantilever.
Each tower also has a multi-directional sleeve block with a mechanical safety lock system that prevents drop and lift. The sleeve block is able to support a total of 40 tons per tower, with the cross beam able to support a centre point load of up to 6,500 kg on a 50 metre span.
